HORSE barns

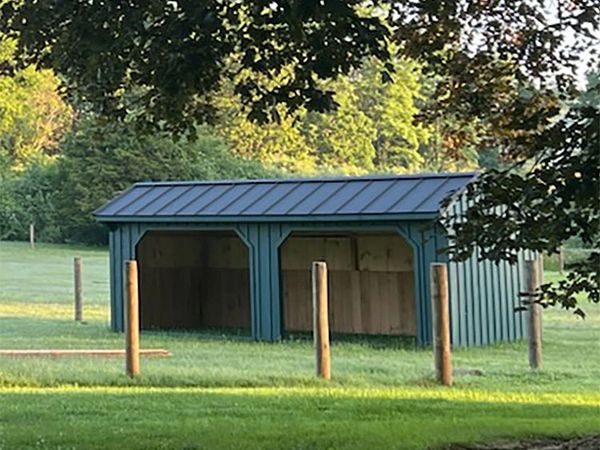

RUN IN
Standard features for our Run-In Sheds include 6"x6" PT timbers for the base, 4" wide x 2' long corner brackets with eyelets for towing and maneuvering around farm, rough-sawn 2"x4" oak post and beam framing, 1"x9" yellow pine siding (board) slat 1"x2" pine batten to cover seams. Interior walls feature 1"x9"x4' high rough-sawn kick board, front opening 7' high (opening width dependent on length of unit). If unit is longer than 20' a drop down support post is required. The largest standard opening size is 14'. Back wall height is 7'. Front wall height is 8'6". Roof peak is 10' tall. Quaker-style roof. Front overhang is 12". Back overhang is 6". LP Silver Tech ½" roof sheathing with reflective foil face intended to help deflect UV rays and keep the building cooler in warm weather. 15 lb. felt paper and GAF lifetime architectural asphalt roof shingles.

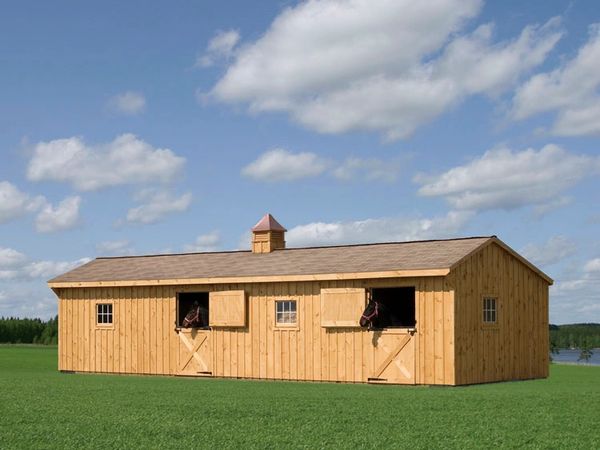

SHED ROW
Standard features for our Shed Row Barns include 42" Dutch door, 6 pane wooden sash slider window with black powder-coated grill, 2"x2" black powder-coated chew guard on all edges. Barns with more than one stall include a 4' dividing wall from front to back of barn with oak kickboard and chew guard on both sides. The wall is capped with a 3' tall black powder-coated grill. A solid dividing wall is also available as an option. All stalls can be custom sized in length for larger and smaller horses. The dividing wall can also be placed to meet customer requirements. Additional tack rooms and glass-in doors are available as options.

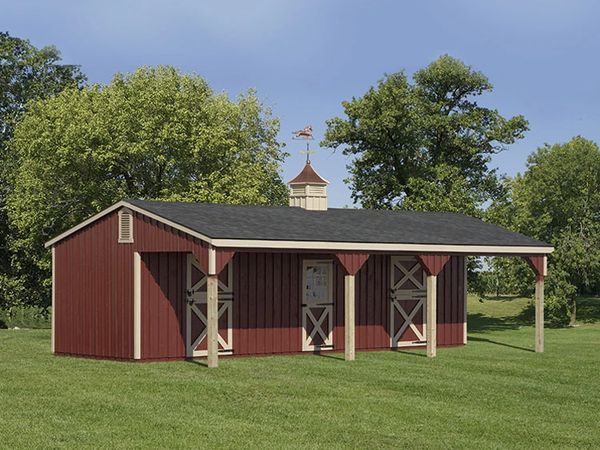

SHED ROW WITH LEAN TO
Standard features for our Lean-To Buildings include 42" Dutch door, 6 pane wooden sash slider window with black powder-coated grill, 2"x2" black powder-coated chew guard on all edges. Barns with more than one stall include a 4' dividing wall from front to back of barn with oak kickboard and chew guard on both sides. The wall is capped with a 3' tall black powder-coated grill. A solid dividing wall is also available as an option. All stalls can be custom sized in length for larger and smaller horses. The dividing wall can also be placed to meet customer requirements. Additional tack rooms and glass-in doors are available as options. Our horse barns are built with 6"x6" PT timbers for the base, 4" wide x 2' long corner brackets with eyelets for towing and maneuvering around the farm, rough-sawn 2"x4" oak post and beam framing, 1"x9" yellow pine siding (board) slat 1"x2" pine batten to cover seams. Interior walls feature 1"x9"x4' high rough-sawn oak kick board. Back wall height is 7'. Front wall height is 8'6". Roof peak is 10' tall. Quaker-style roof. Front overhang is 12". Back overhang is 6". LP Silver Tech 1/2" roof sheathing with reflective foil face intended to help deflect UV rays and keep the building cooler in warm weather. 15 lb. felt paper and GAF lifetime architectural shingles.
LARGE HORSE BARNS
HIGH COUNTRY
HIGH COUNTRY
HIGH COUNTRY
Standard features of our High Country Horse Barns include white pine board & batten siding & 2 sliding doors per end of center aisle, OSB roof sheeting, 15 lbs. felt & lifetime architectural shingle roof, oak kickboard 4' high, 1 sliding door & 1 window per stall, wood floor, 1 service door & 1 window in tack room, 1 loft door & 1 loft wi
Standard features of our High Country Horse Barns include white pine board & batten siding & 2 sliding doors per end of center aisle, OSB roof sheeting, 15 lbs. felt & lifetime architectural shingle roof, oak kickboard 4' high, 1 sliding door & 1 window per stall, wood floor, 1 service door & 1 window in tack room, 1 loft door & 1 loft window, full loft with powder coated ladder, 8 pitch roof, and # 1 T&G SYP on stall fronts with powder coated steel grill.
PLEASE CALL 845-758-1054 FOR MORE INFORMATION AND PRICING
For starter pricing, click here
MONITOR
HIGH COUNTRY
HIGH COUNTRY
Standard features of our Monitor Barns include white pine board and batten siding, 2 sliding doors per end of center aisle, OSB roof sheeting, 15 lbs. felt and lifetime architectural shingle roof, 1 sliding door and 1 window per stall, 1 loft door and 1 window on loft gables, 1 window per stall in loft, wood floor, 1 service door and 1 wi
Standard features of our Monitor Barns include white pine board and batten siding, 2 sliding doors per end of center aisle, OSB roof sheeting, 15 lbs. felt and lifetime architectural shingle roof, 1 sliding door and 1 window per stall, 1 loft door and 1 window on loft gables, 1 window per stall in loft, wood floor, 1 service door and 1 window in tack room, full loft with powder coated ladder , 4 pitch roof over stalls and 6 pitch over loft, oak kickboard 4' high and # 1 T&G SYP on stall fronts with powder coated steel grills.
PLEASE CALL 845-758-1054 FOR MORE INFORMATION AND PRICING
For starter pricing, click here
TRAILSIDE
TRAILSIDE
TRAILSIDE
Standard features of our Trailside Barns include white pine board & batten siding, OSB roof sheeting, 15 lbs. felt & lifetime architectural shingle roof, oak kickboard 4' high, 1 sliding door & 1 window per stall, wood floor, 1 service door & 1 window in tack room, 2 sliding doors per end of center aisle, # 1 T&G SYP on stall fronts with
Standard features of our Trailside Barns include white pine board & batten siding, OSB roof sheeting, 15 lbs. felt & lifetime architectural shingle roof, oak kickboard 4' high, 1 sliding door & 1 window per stall, wood floor, 1 service door & 1 window in tack room, 2 sliding doors per end of center aisle, # 1 T&G SYP on stall fronts with powder coated steel grill, no loft, 4 pitch roof.
PLEASE CALL 845-758-1054 FOR MORE INFORMATION AND PRICING
For starter pricing, click here
KENNEBEC
TRAILSIDE
TRAILSIDE
PLEASE CALL 845-758-1054 FOR MORE INFORMATION AND PRICING
For starter pricing, click here

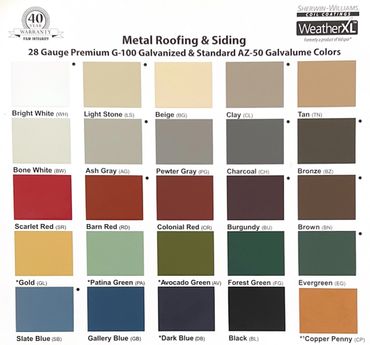

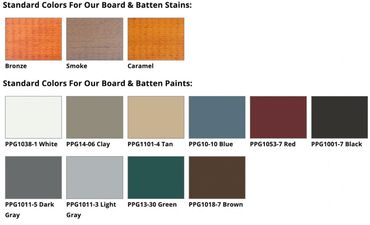

COLOR & ROOFING OPTIONS
